STAIN-PROOF » Products » Sealers » Industrial » DRY-TREAT 100N CI™

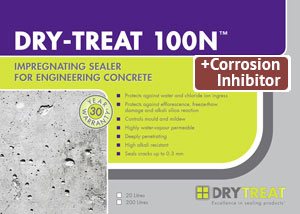

DRY-TREAT 100N CI™

IMPREGNATING SEALER FOR ENGINEERING CONCRETE

DRY-TREAT 100N CI™ is a deep penetrating, permanent water-repelling sealer that protects engineering concrete from damage caused by water and water-borne chloride ion salts. It is also an excellent electro-potential corrosion inhibitor for steel reinforcement. Exposed concrete surfaces become easier to clean, maintain and stay in service for longer

Find a Retailer

Typical applications:

DRY-TREAT 100N CI™ is suitable for a wide variety of applications, including new and old marine infra-structure, bridges, tunnels, wharves and jetties, concrete high rise structures, car parks and swimming pool surrounds. It is the ideal preventive maintenance measure to maintain the condition of a concrete structure by protecting it from deterioration or slowing down the rate of deterioration.

DRY-TREAT 100N CI™ works to significantly reduce the corrosion currents by chemically interrupting the electrolytic current and causing a decrease in the corrosion process. Corrosion current measured after application is negligible while untreated concrete may show visible signs of corrosion including rust and cracks within just a few years. The inhibitor component has a high affinity with steel and forms a protective film on the steel surface. It is able to penetrate through the concrete cover to reach the steel reinforcement.

Benefits:

Able to repel water and water-borne chloride ion salts.
Able to migrate through the concrete cover to reduce the chloride ion induced corrosion rate of carbon and galvanized steel reinforcement by between 92 – 99 per cent;
Able to inhibit corrosion of carbonated reinforced concrete, by keeping out a crucial element – water.
Without water to create a salt bridge the carbonation cannot cause corrosion of steel within the concrete.
Effective in heavily chloride-contaminated concrete.
Able to equalize the differences in electrochemical potential between polymer repair concrete and the existing concrete.
Non film-forming.
Able to work without changing the appearance of the surface - keeps the original look;
An excellent chloride ion salt screen by 98 per cent – ideal for marine and pool areas.
Highly water vapour permeable – able to breathe so there is no build-up of subsurface moisture, allowing it to dry out.
Deeply penetrating – protecting against weathering and wearing;
Solvent free – 100 per cent active ingredient;
Very alkali resistant – won’t breakdown in contact with cement based materials, and
Able to seal hairline cracks up to 0.3 mm (0.012 in.) and does not flake or peel.

Warranty:

The treatment is considered permanent and A 30-YEAR PERFORMANCE WARRANTY is offered when applied by an Level 4 Dry-Treat Accredited Applicator following our written instructions and site treated samples tested by us.

Application rates:

Total application rate is one quart per 16 sq. ft (one litre per 1.67 sq.m.).

VOC Content:

< 390 g/L for EPA purposes.

Pack size:

5 gallon (20 litre) and 50 gallon (200 litre) steel drums.

HOW TO USE

ALWAYS TEST PRODUCT ON A SMALL AREA FIRST and allow a 24 hour cure time to determine the ease of application and desired results.
Ensure surfaces to be treated are dry, clean and free of residues.
Product is to be applied without thinning.
Generously saturate the surface with product using a low-pressure hand spray, a clean brush, or similar. Surface should have a mirror-like "wet" look for 3-5 seconds. Avoid contact with surrounding areas.
After a minimum of 6 hours, repeat Step 4. Total application rate is approximately one quart per 16 feet (one litre per 1.66 sq. metres) depending on absorption.
Allow 10 minutes for product to penetrate surface then polish surface with a clean white dry cloth to remove excess product.
Clean equipment with methylated spirits.
Sealer will not prevent surface etching or wear and may lighten or darken some surfaces.

Corrosion Inhibitor: An optional amino corrosion inhibitor can be added to DRY-TREAT 100N to make DRY-TREAT 100N CI. It is an excellent electro-potential corrosion inhibitor for steel reinforcement. DRY-TREAT 100N CI works to significantly reduce the corrosion currents by chemically interrupting the electrolytic current and causing a decrease in the corrosion process. The inhibitor component has a high affinity to steel and forms a protective film on the steel surface and also scavenges oxygen.

PRECAUTIONS

Do not take internally. Apply when surface temperature is between 5 - 35ºC (40 - 95ºF). Avoid moisture contact with the surface for six hours after application. Protect surrounding areas from over-spray. Keep away from drains, plants, water and soil. Use only in well-ventilated areas. Use a positive pressure respirator if ventilation is inadequate. Wear suitable solvent-resistant gloves, protective clothing, safety goggles and an organic vapour respirator during application. Avoid applying in windy conditions. Wash hands thoroughly.

Active content:

Greater than 99 per cent isobutyl triethoxy silane. It complies with UK Highways Agency BD 43/03 "The Impregnation of Reinforced and Pre-stressed Concrete Highway Structures Using Hydrophobic Pore-Lining Impregnants" and BS EN 1504-2:2004 "Products and Systems for the Protection and Repair of Concrete Structures".

VOC:

390 grams per Litre.

Brochures

DRY-TREAT™ Protection for Engineered Structures

Downloads

DRY-TREAT 100N SDS
Alkali Silica Reaction Concrete Sleepers
Certificate for Potable Water
technical specification clauses_100n

Media Coverage

DT100N Civil Engineers
100N High Rise AAP Centre 97
100N WA Railway Bridge

Reports

Journal Article: Long term performance of silane on reinforced concrete

CTI/RTA Evaluation of Waterproofing for Concrete
DRY-TREAT 100N CSIRO 14 PAGES
Dry-Treat 100N Dr Pfeifer 3 Pages
DRY-TREAT 100N EARLY TREATMENT OF CONCRETE 13 PAGES
DRY-TREAT 100N SEATING PLATS 4 PAGES
SERVICE LIFE PREDICTION
UK BRIDGE DESIGN MANUAL IMPREGNATION

ILLUSTRATIONS

Close up of pores

Permanent bonding
